Born for high-precision positioning | AT-S1000-07C is newly launched

At the beginning of 2022, ALSONTECH adheres to the R&D concept of "innovation, never stops", and brings a new series of 3D vision sensor AT-S1000-07C, focusing on solving high-precision spatial 3D positioning problems for industrial users and bringing more complete myopic field vision solutions.

01 Performance upgrades

High precision, high cycle time

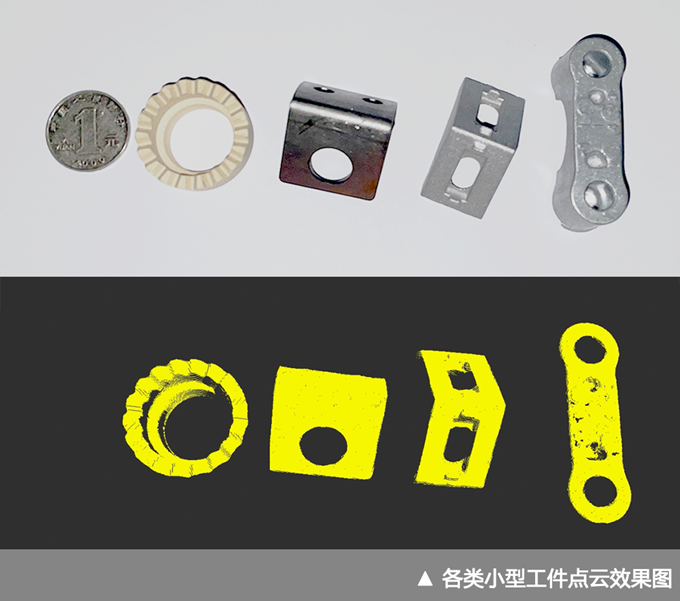

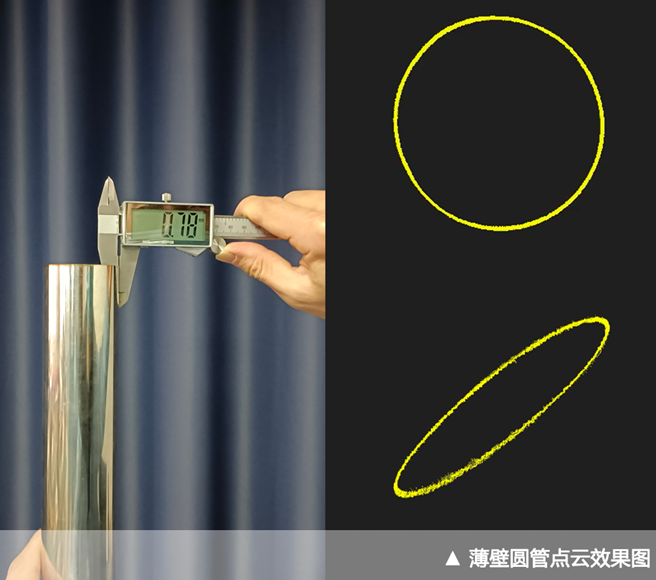

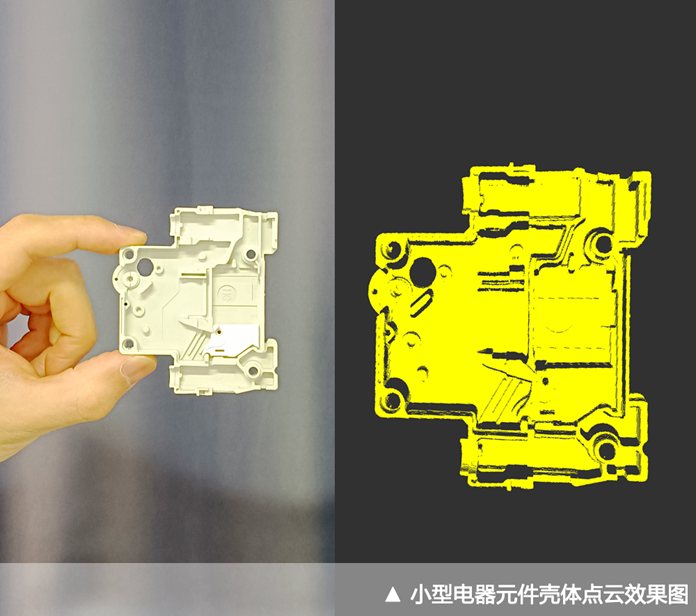

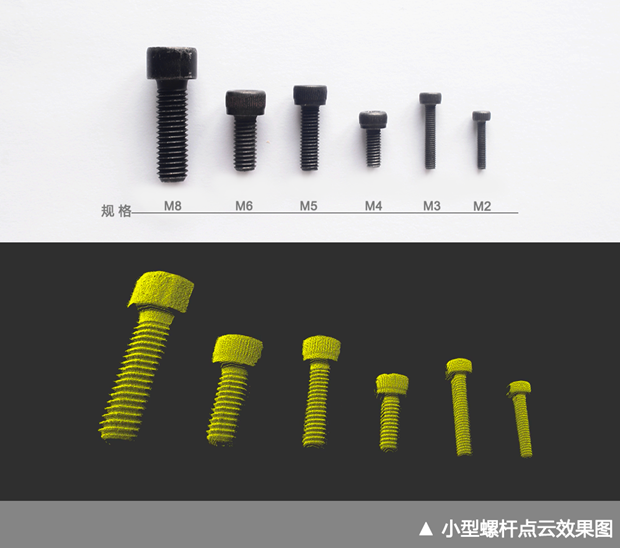

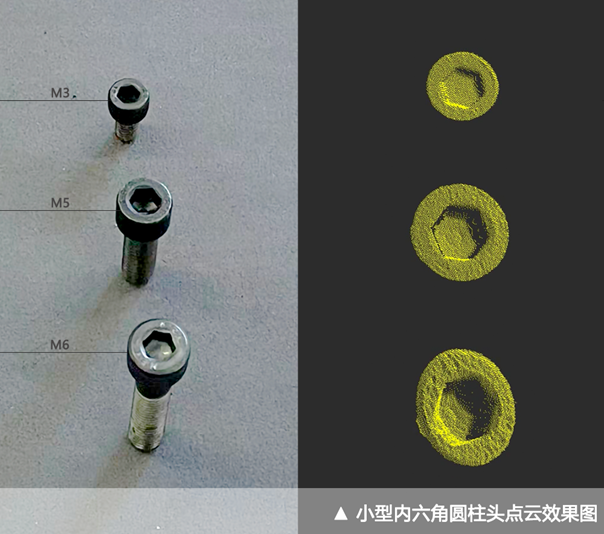

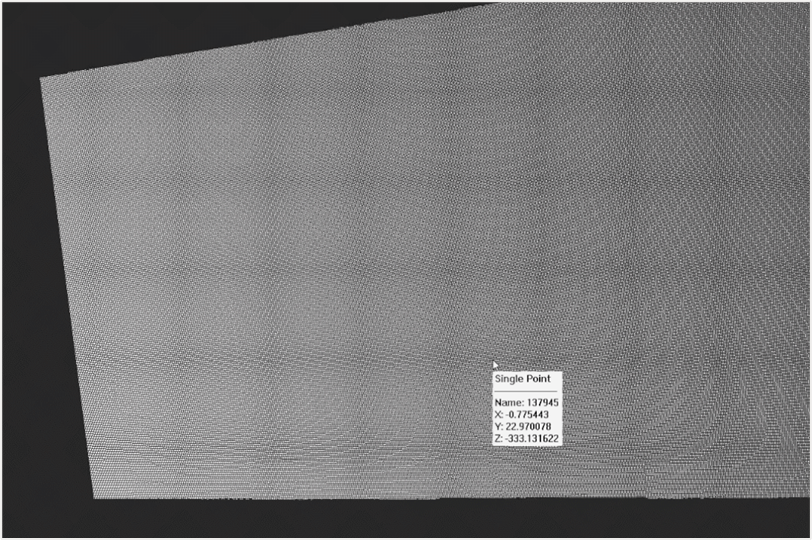

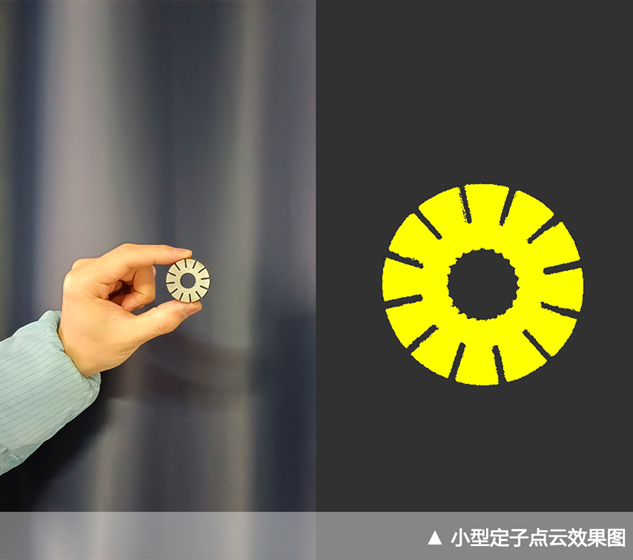

AT-S1000-07C is a binocular structured light transmitter that adopts grating structured light imaging, with mature point cloud algorithm and camera calibration technology The calibration accuracy is 0.03mm, and the imaging speed of a single scan is 0.6S, which is fully used Users need 3D space positioning of small workpieces, and the external size is in the centimeter/mm level The workpiece is scanned, and the wheel profile is complete and the details are obtained Point cloud data.

Adaptable upgrades

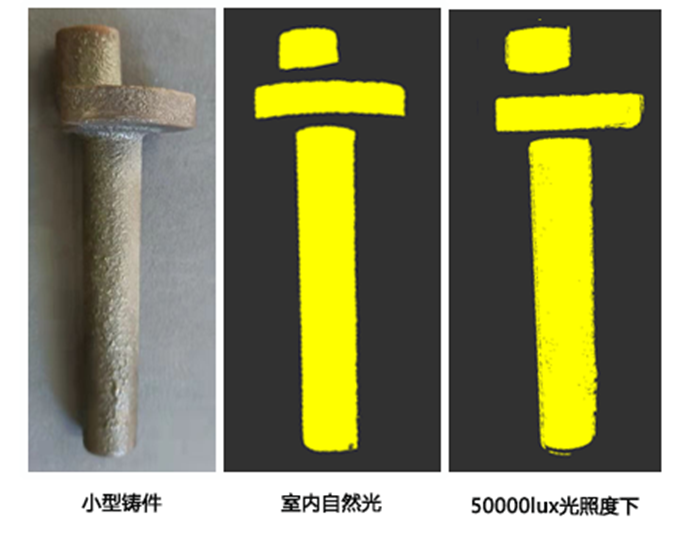

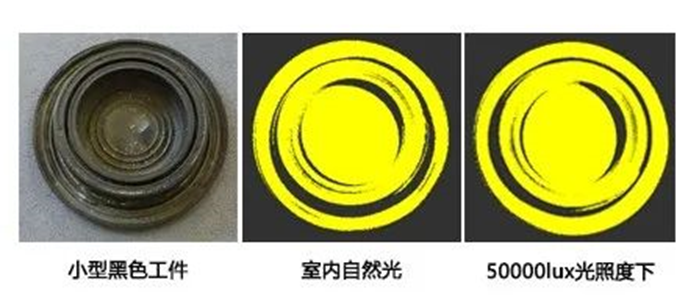

Grating structured light products have harsh requirements for ambient illumination conditions, and the working illuminance of the same type of visual sensor is suitable for the range   Within 4500lux, better products can reach 10000lux, and the point cloud will be lost when the illumination is high. The AT-S1000-07C blocks the interfering ambient light from the camera by selecting a specific band to ensure an effective junction The light construction advances to improve the quality of point cloud imaging, and greatly reduces the influence of the working environment and workpiece characteristics on the identification and positioning It can be completely imaged under the measured illuminance of 50000lux.

Strong adaptability

Through the AT-S1000-07C to scan the color swatch, you can obtain complete and flawless point cloud data, and identify the best The "light-absorbing" black swatch is also effortless. The AT-S1000-07C has the ability to perfectly identify workpieces of various colors.

Flexible configuration

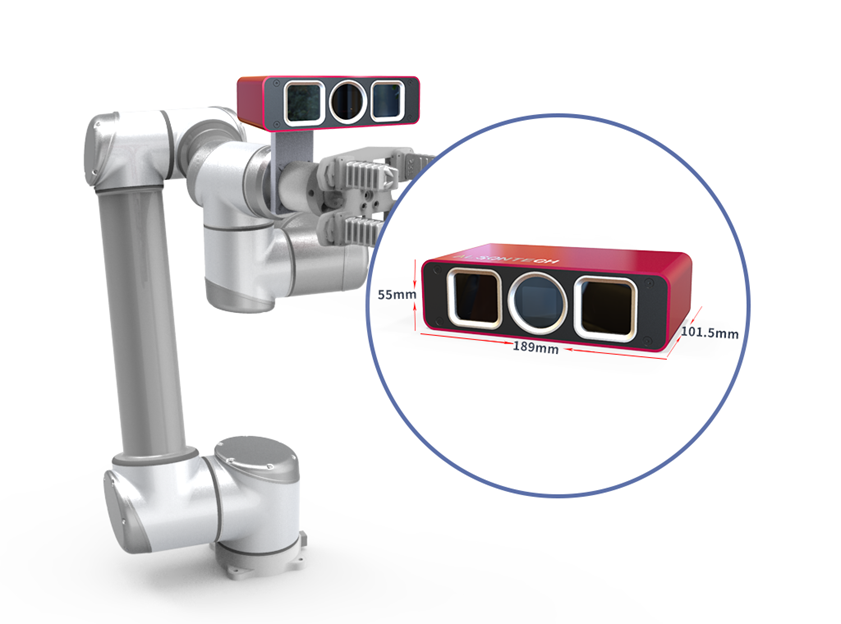

The AT-S1000-07C is highly integrated in design, compact in size, weighs only 1Kg, and can be easily lifted with one hand, suitable for "eye in hand." The arm-mounted installation   method is also very friendly to collaborative robots, with minimal load and cramped installation space It can also be moved flexibly. Rapid deployment to meet the needs of efficient scanning and positioning of myopia.

02 Technical parameters

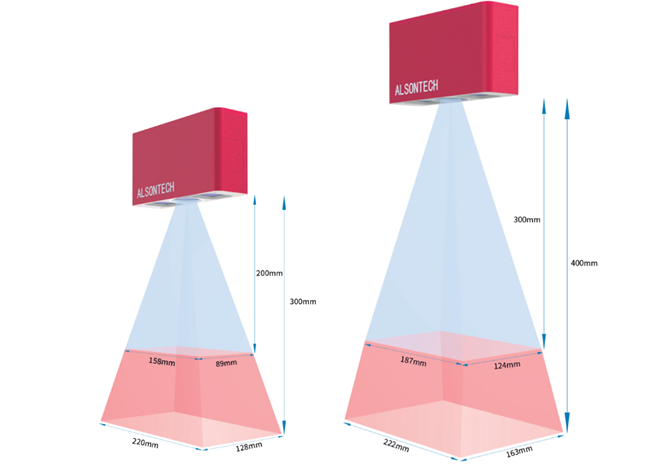

For different scene and workpiece characteristics, the AT-S1000-07C offers two working field options.

03 Service Support

AT-S1000-07C is now favailable, and ALSONTECH will provide users with complete hardware services and a full set of vision solution support.

Free borrowing test

AT-S1000-07C standard products are now open for appointment testing, if you have borrowing test needs, you can fill in the message information, we will arrange personnel and you in time.

Scenario evaluation

ALSONTECH has an experienced team of project evaluation, algorithm development and on-site commissioning engineers, which can quickly provide you with targeted evaluation and test plans according to the process and technical requirements of your specific production site working conditions, and provide you with relevant suggestions for integrated solutions such as robot communication, fixtures, mechanism settings, installation layout, etc., to achieve the rapid landing of the project.
