AT-S1000-07B Series
3,200 Profile Points, Frame Rates from 1,500 Hz to 9,000 Hz. High-speed dynamic scanning of various workpieces enables real-time output of micron-level 3D point cloud and depth data, supporting a wide range of dynamic positioning, measurement, and inspection applications.
AT-S1000-04B Series
2,048 Profile Points, Frame Rates from 300 Hz to 4,000 Hz. High-speed dynamic scanning of various workpieces enables real-time output of micron-level 3D point cloud and depth data, supporting a wide range of dynamic positioning, measurement, and inspection applications.
Product Advantages
—
405 nm Ultra-Uniform Blue Laser
Utilizing a 405 nm ultra-uniform blue laser, the system projects a fine laser line onto the sensor, enabling micron-level profile acquisition. Enhanced sensitivity to small features delivers greater measurement accuracy and detail capture.
Full-Range Focus

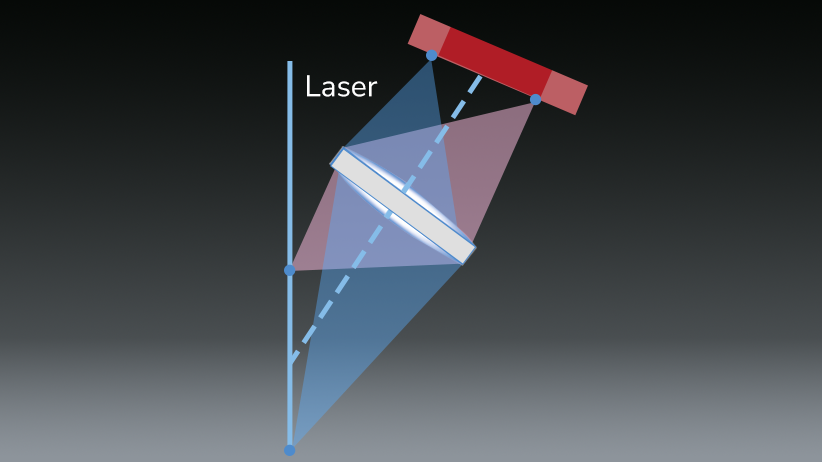

By employing a tilted imaging plane, reflected laser light remains sharply focused throughout the full measurement range. Clear image quality and stable data are maintained even when measuring pins, deep holes, or inclined surfaces.

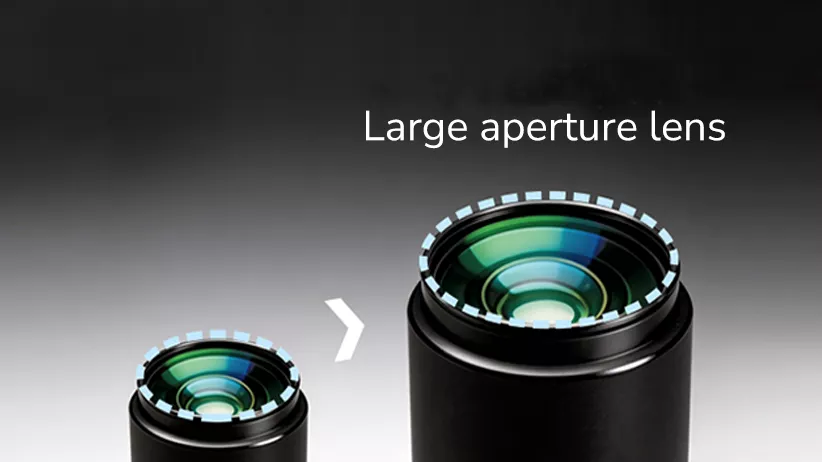

Large-Aperture Optics
Equipped with a large-aperture lens delivering outstanding MTF performance, effectively reducing chromatic aberration, distortion, and vignetting while maintaining high-quality data acquisition under low-light conditions.
High-Precision CMOS Sensor
A high-dynamic-range image sensor combined with a customized Scheimpflug optical design ensures highly accurate data acquisition across the entire measurement range, even under challenging lighting and depth conditions.
Single-Shot HDR Support
A single scan captures high-quality point cloud data from surfaces with varying reflectivity, significantly improving compatibility with diverse materials and enabling complete data acquisition from composite surfaces.
Easy Deployment

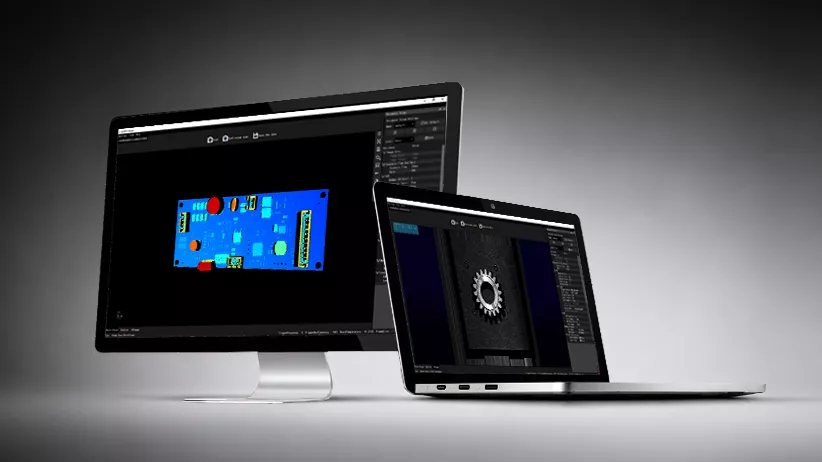

Comprehensive SDK and intuitive visualization software enable plug-and-play integration. Data acquisition and point cloud generation can be quickly configured, accelerating development and deployment.
Core Specifications
—
3D Point Cloud Results
—
  • Phone back panel
    Phone back panel
  • Forged engine connecting rod
    Forged engine connecting rod
  • Metal matte plate workpiece
    Metal matte plate workpiece
  • Black sealing strip
    Black sealing strip
  • Stainless steel reflective flange
    Stainless steel reflective flange
  • Black injection molded part
    Black injection molded part
  • Steel plate weld
    Steel plate weld
  • Circuit board
    Circuit board
  • Battery module
    Battery module
  • Battery module
    Battery module
  • Stamped sheet metal workpiece
    Stamped sheet metal workpiece
  • Brake pad
    Brake pad
