Smaller & Smarter | ALSONTECH "NANO Series" Binocular Structured Light 3D Vision System Newly Launch
When choosing a robot, the key factor that users will consider is "paypayload".whether it is a industrial robotic arm or a collaborative robot, the payloaddetermines the range of scenarios it can work in and the energy efficiencyratio that users can get. As an important end effector, the vision system wasdeveloped to reduce the footprint of the robot payload by arm-mountedinstallation, and to increase the flexibility of other adjacent end mechanismssuch as grippers through extreme volume compression.
In order to adapt to the needs of different working conditions anddifferent construction environments, ALSONTECH provides users with twosolutions of grating structured light and laser line structured light, and twonew 3D cameras meet the needs of differentiated selection, covering commonworkpieces and operating environments, loading and unloading, disorderly sorting,assembly, unmanned charging/refueling guidance, grinding, spraying... Users canboldly expand the use scenarios and develop the limits of the use of the newNANO series 3D cameras.
Compact design, lightweight and highly integrated
For binocular 3D visioncameras, "slimming" is by no means an easy task, taking into accountstructural stability, heat dissipation, precision, interface and other aspects,which requires manufacturers to design and integrate sensors. ALSONTECH realized an average reduction of 30% in the weight and size of the NANO series cameras by anaverage of 40%(based on the previousgeneration of small-size binocular cameras) ,providing more payload allowance and looser end effector installationspace for robotic arms, especially light robotic arms represented bycollaborative robots. And it can guide the light robotic arm into more crampedand narrow spaces for precision processing such as assembly, gluing, andwelding, and further expand the use space of the robot.
Binocular design, mature scheme, precision guarantee
ALSONTECH has a complete "3D binocular structured light imagingtechnology", with the best baseline ratio design, to ensure the imagingaccuracy of 3D cameras at the millimeter level and below, and has completed thedelivery of thousands of binocular products and on-site continuous operationverification, known for stable performance, accurate positioning and lowfailure rate.
"Binocular structure" design can effectively inhibit thetemperature drift phenomenon caused by temperature changes of sensor opticalproducts, reduce the temperature drift coefficient, ALSONTECH has mature binocular imaging technology, ensuring that the stablityoutput accuracy of the product in the working temperature range of 0 °C ~ 50°C, uninterrupted use of the output accuracy does not change significantly orirreversible abnormalities,to ensure the smooth production on site, reducerepeated parameter correction and other manual intervention.

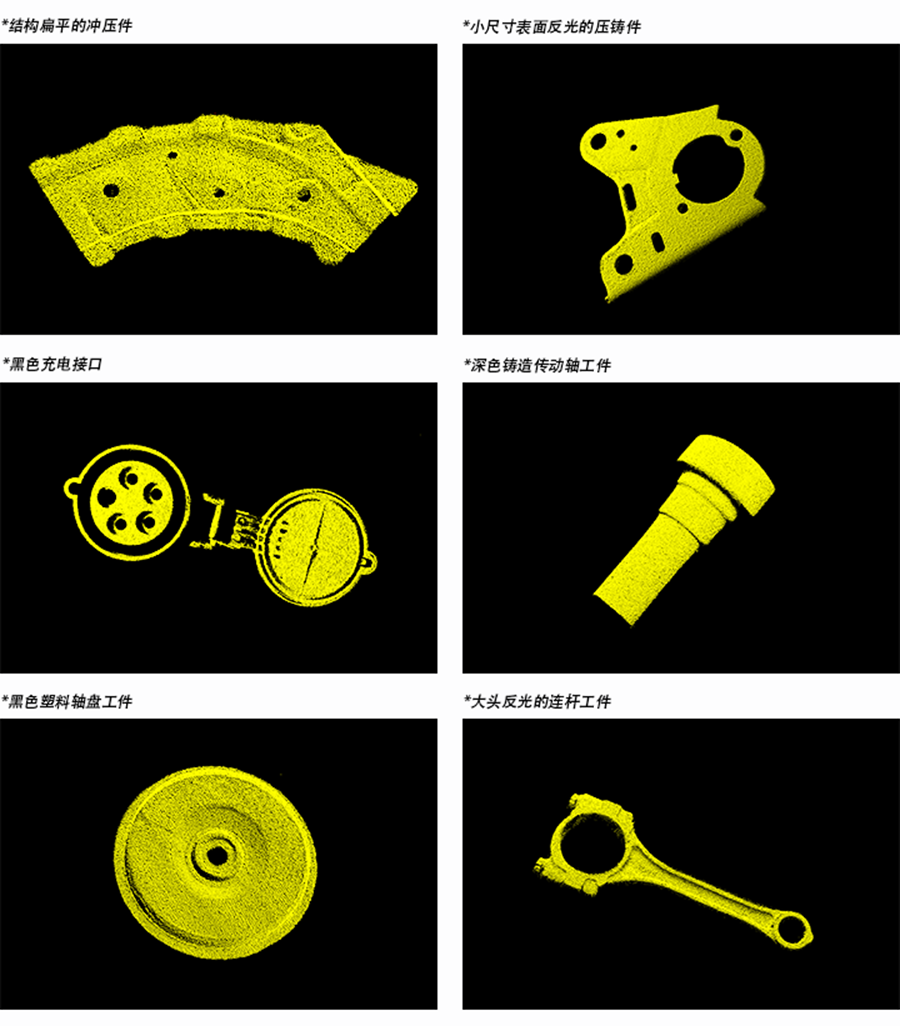

Various typical workpiecepoint cloud effects
The collection environment iscommon production site lighting conditions: 3000Lux~20000Lux
Stable design, industrial quality
The new NANO series continues the industrial grade quality of ALSONTECH, using top-grade optical Baslar lenses, theproduct shells are all independent CNC integrated processing and molding, afteranti-corrosion, wear-resistant, insulation and other surface treatment andsealing treatment, the protection level reaches IP65, to meet the requirementsof long-term use in various typical industrial sites.
Since the target use environment of the NANO series is mostly mounted onthe mobile operation of the terminal shaft of the robotic arm, in order toensure the stability of the structure and performance of the product, in the production and manufacturing process, in addition to insisting onselecting good materials and materials, each set of products must also gothrough more than 30 performance tests and long-term fatigue tests such as bumptest, vibration resistance test, electromagnetic test, high and low temperaturetest before leaving the factory In the face of frequent mobile working conditions or with AGV/AMR andother mobile/composite robots can also be easily coped, can continue to outputhigh-precision positioning results for users, achieve 7*24 hours of continuousoperation, the average service life of 5~8 years, on-site maintenance costs aregreatly reduced, and the comprehensive ROI of users is further improved.
Product key parameters
NANO 3D Vision Sensors are on sale from now on
This will be your new NANO,Smaller & Smarter. With reduced size andweight, and more possibilities for 3D vision applications, both cameras willprovide you with a variety of options to adapt to different workingenvironments.
The new NANO 3D vision sensors are available, choose modelAT-S1000-06C-S3 or AT-S1000-04A-S3 according to your needs. If you areinterested in 3D vision technology or have a project to evaluate, please leavea message or call us at 400-877-1617, our professional 3D vision engineers willcontact you ASAP.
