Small body with great wisdom | ALSONTECH AT-S1000-06C-S 3D vision system

    Can the product be smaller?

      No problem!

    Can the product be lighter?

    OK!

  Can the accuracy be a little higher?

    We did it!

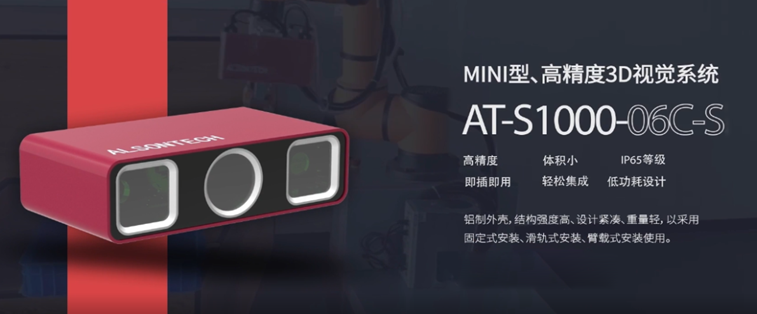

Mini-type high-precision 3D vision system

In order to meet and meet the market demand for miniaturization and lightweight of visionsensors, ALSONTECH launched the AT-S1000-06C-S 3D visionsensor, which was produced in the previous generation The AT-S1000-06C has been upgraded again to further compress the original dimensions to L189mm × The ultimate body shape of W100mm ×H55mm, in the case of highly integrated structure, can still meet the high precision and fast speed of users and market sensors   Shooting and high stability of the use requirements.

01 MINI Body Shape - Suitable for arm mounted

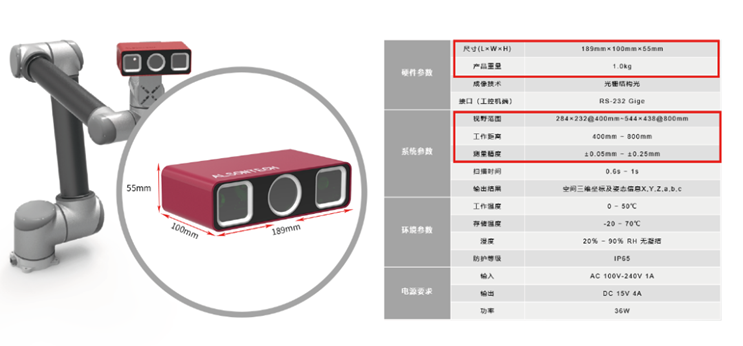

ALSONTECH AT-S1000-06C-S is compact, with dimensions of only L189mm× W100mm× H55mm, and a weight of only 1kg. In order to ensure the high impact resistance of the product during arm-mounted installation, from design and development to material selection, ALSONTECH fully considers the impact of shock and vibration on product accuracy, and fully verifies it by simulating extreme experiments such as truck vibration test and drop test. At present, this product has been widely used in 3C industry, new energy, power inspection, unmanned refueling/charging and other scenarios.

02 Strong physique-stable structure, strong adaptability

ALSONTECH AT-S1000-06C-S is more integrated than its predecessor, but for sensors, Reducing any 1mm is an extremely tough challenge. After the external dimension is compressed, in order to ensure the reliability and stability of the product, ALSONTECH adopts high strength in the shell Aluminum alloy integrated CNC machining technology, reduce weight, at the same time to ensure high strength and high Rigid, IP65 protection, so that the AT-S1000-06C-S can be used in high temperature, high dust and other production environment such as welding and grinding.

03 High precision - enabling intelligent automated assembly

The ALSONTECH AT-S1000-06C-S adopts a structured optical plus camera solution with a measurement accuracy of up to 0.05mm, which is specially designed for high-precision positioning requirements The design has matured and should be used in the assembly of power assemblies such as engines and transmission boxes to solve the problem of steam Automotive, wind power, military and other industries have high consistency requirements for craftsmanship. For example, in the past, a high-end equipment manufacturing enterprise bolted a component , seemingly "simple" action, in the past it took two people two hours to screw more than a hundred Bolts, now upgraded through intelligent manufacturing, through 3D visionguidance The robot only takes 40 minutes to complete, the strength can maintain the standardization, and it can be continuous for 24 hours work, greatly improve work efficiency, meet quality requirements.

04 Short cycle time - fast imaging increases efficiency

AT-S1000-06C-S adopts grating structured light imaging, and the data acquisition time is less than 1s, which can fill the high section Shooting requirements. It has been widely used in food, logistics, education and other industries.

Quality and service first

ALSONTECH has never stopped walking on the road of research and innovation, improving product performance, meeting user needs, and improving user experience.   ALSONTECH will bring more innovative products and technologies in the future!
