New Products Release | ALSONTECH Anti-Bright light 3D Vision System AT-S1000-01A-S2

ALSONTECH Anti-Bright light 3D Vision Sensor New Additions Appear!

Compared with the world's first outdoor version of the 3D vision sensor AT-S1000-04A series, the AT-S1000-01A-S2 also has the ability to resist outdoor high-illumination and strong light interference. AT-S1000-01A-S2 also has a special black technology that the 04A series does not have, please take the small book if you love new knowledge, the following may be your long-awaited solution!!

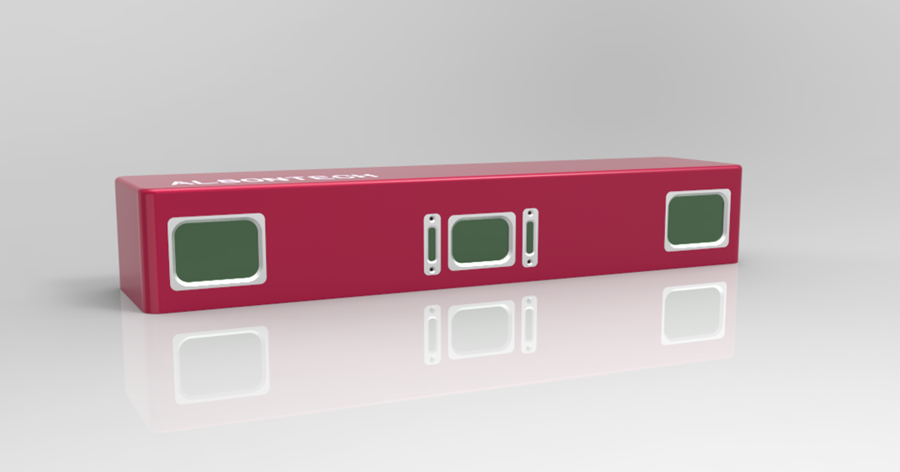

(ALSONTECH AT-S1000-01A-S2).

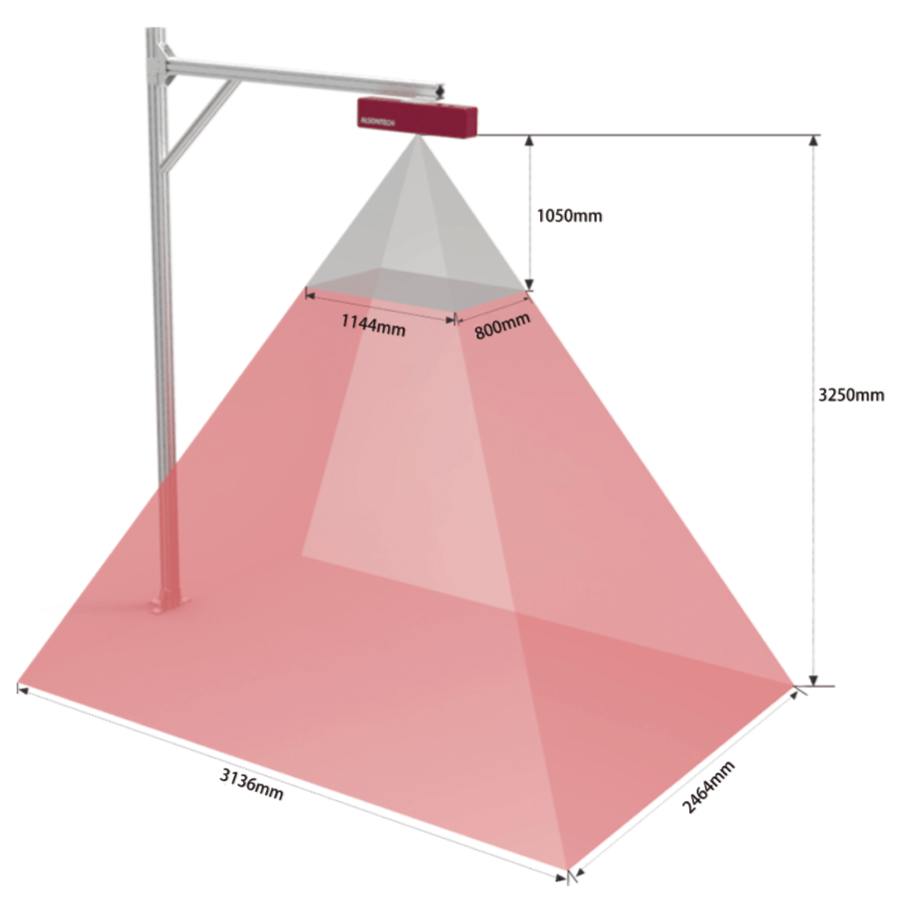

Larger DOV & FOV, suitable for large workpieces and large storage bin

The line laser solution can be widely used in long-distance, high-precision, large field of view, outdoor and other scene requirements. Flexible installation method, can be applied to multi-directional eye scanning positioning.

Field of View:

1144×802@1050mm~3136×2464@3250mm

Measurement accuracy:

±0.2mm~±2mm

Working distance:

1050mm~3250mm

Upgrade Software and hardware, steady performance in day and night

The addition of fill light adds wings to the intelligent image processing function. At night or when the ambient light is insufficient, the same high quality can be captured through the fill light under the condition of sufficient ambient light Image, so that the image processing module can measure the high-precision feature size.

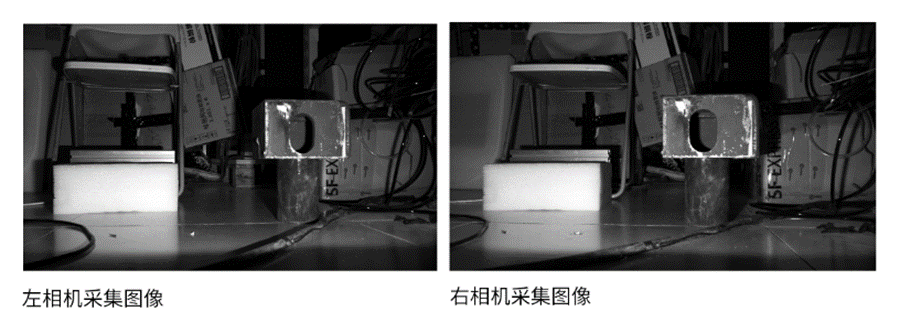

The effect of the fill light under normal indoor lighting is as follows:

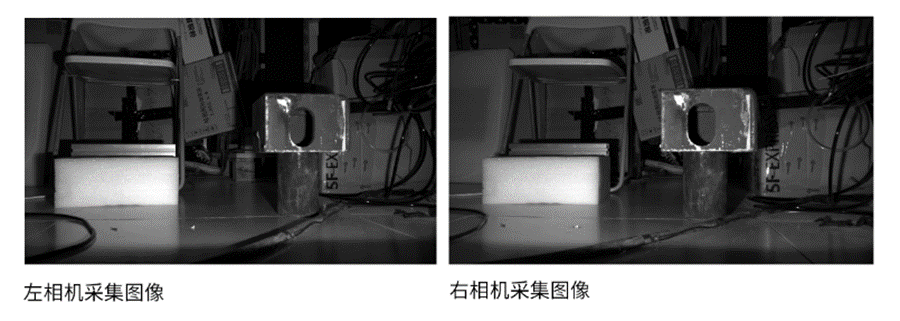

The indoor 9 p.m. fill light effect is as follows:

It can be seen from the picture that after adding the fill light, under the premise of the same exposure gain, the AI image collected during the day and night does not change much.

In the actual project, the relatively complex or small features on the workpiece are sorted out at the point cloud for the time limit of the intelligent diagram The processing function comes in handy, through camera measurement techniques and software depth The Xi function can greatly improve the accuracy of small features.

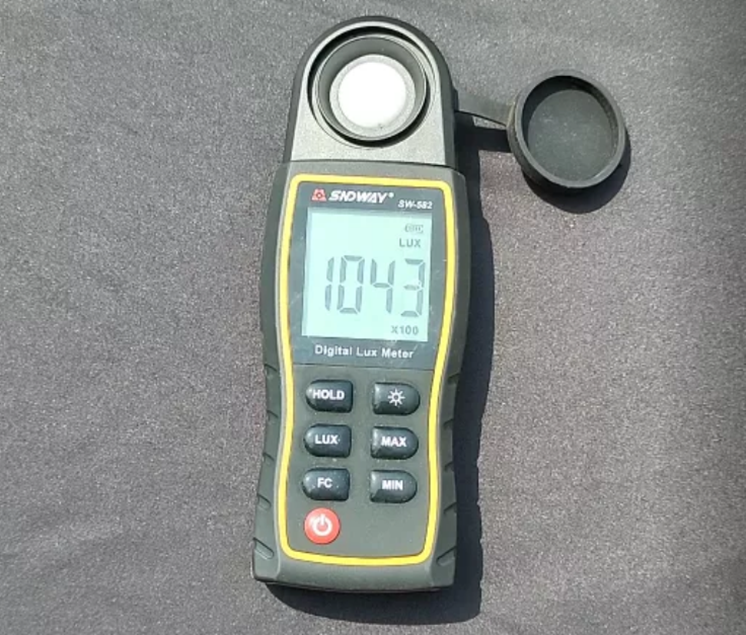

Dominate black technology:   no fear of 110,000 lux strong sunlight

At ambient illumination (> 100,000 lux), we use the AT-S1000-01A-S2 for various typical workpieces, including energy chains Buckles, steering joints, brake discs, black plastic parts, reflective workpieces (e.g. car lights, reflective gear frames), etc Row scanning to obtain point cloud data with clear data, clear structure, clear boundaries and rich details. Strong proof that in the indoor environment where there is strong sunlight interference, our own The product is so solid and reliable, indestructible!

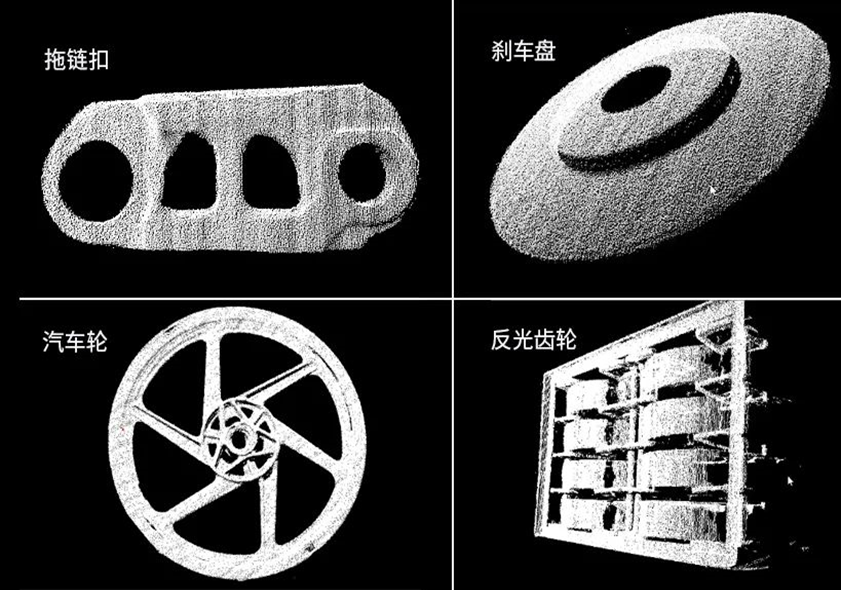

Scanning of workpiece point cloud data under the bright light of the outdoor sun

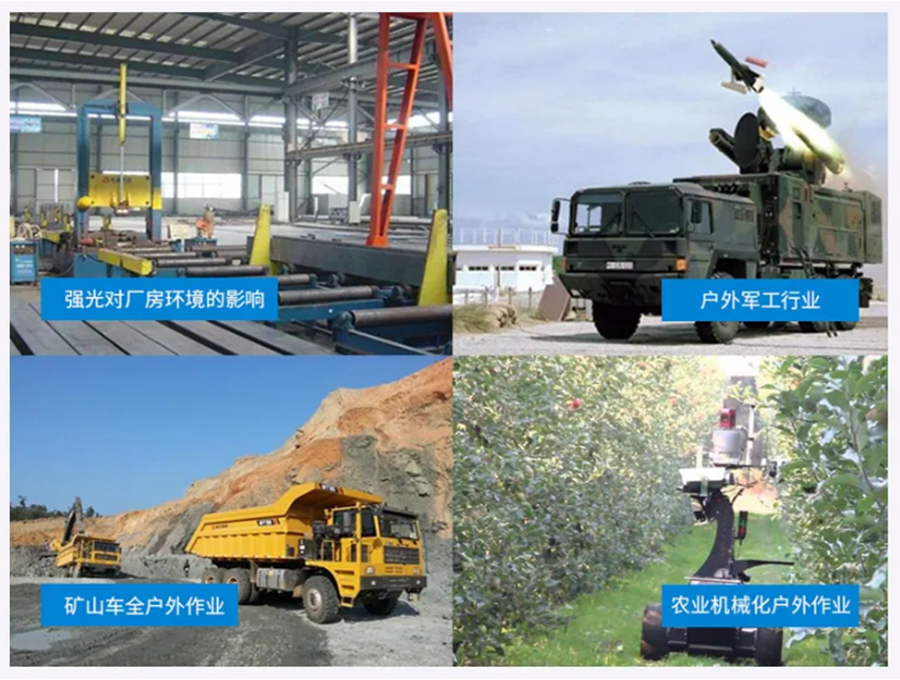

widely used in various outdoor scenes

In   the past, due to technical limitations, the 3D visual system had zero resistance to sunlight, and it   became in the environment where sunlight was dry "Blindness" leads to the limited application of many indoor and outdoor scenes. It can be widely used in ports, mines, military industry, municipal, agricultural and other outdoor scene.

Strong support, so that customers can benefit a lot

1. Indoor and outdoor craftsmanship are interconnected to improve production efficiency. 2. The reliability of the product is higher and the project evaluation is easier. 3. Tailor-made, debugging and operation operation is simple, intuitive and convenient.
